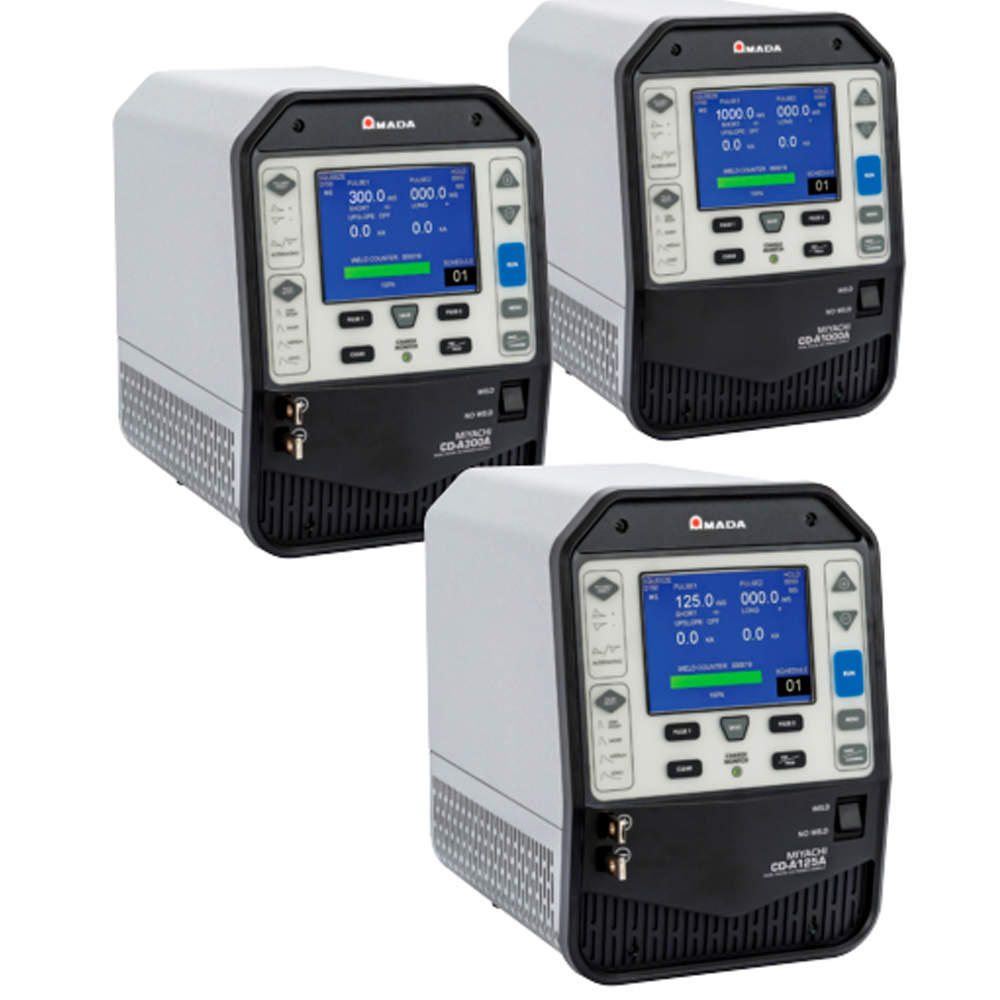

Amada CD-A125A CD-A300A CD-A1000A
Capacitive Discharge Welders
The CD-A is the latest and most advanced capacitive discharge welder that is automation-ready and features dual pulse output with control and monitoring of both pulses.
• Built-in current monitor
• Four pulse widths with fast rise times
• Automatic polarity switching
CD-A125A/300A only
Keys Features
• Dual pulse function helps overcome surface inconsistencies
• Built-in monitor measures peak current for both pulses for process
monitoring

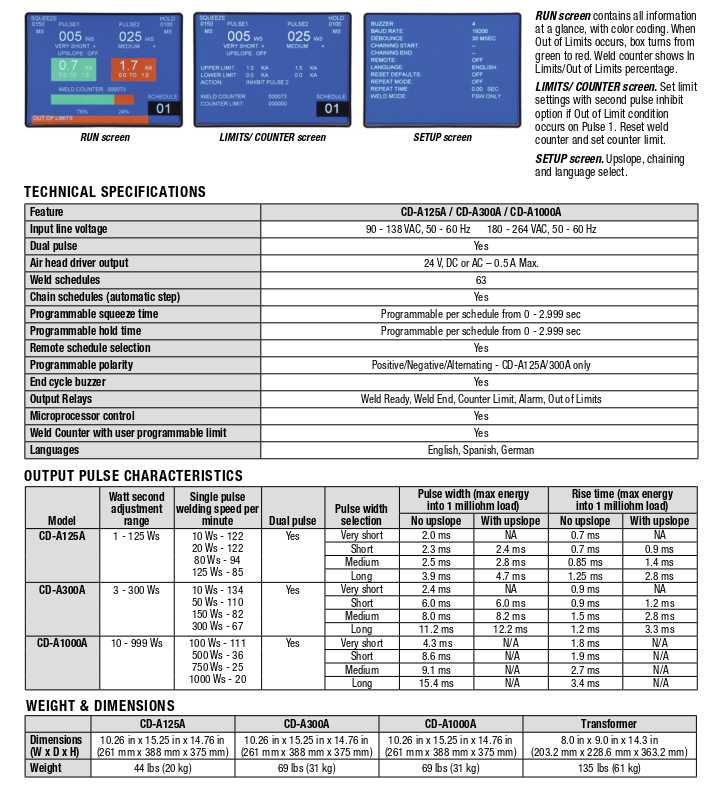

• Process monitor features a color coded bar graph on the RUN screen that
provides instant weld history of In Limit/ Out of Limit percentages to assess
process performance
• Upper and lower limits can be set for both pulses, with an option to inhibit
Pulse 2 if Pulse 1 is out of limits. Prevents weld blow out
• Upslope function allows gradual ramping of weld energy to alleviate weld
splash CD-A125A/300A only
• Automatic polarity switching between pulses provides even heating
between electrodes and increases electrode life CD-A125A/300A only
• Up to four software selectable pulse widths increases the range of welding
applications and improves process optimization
• Effcient power electronics provide high repetition rates
1/2
